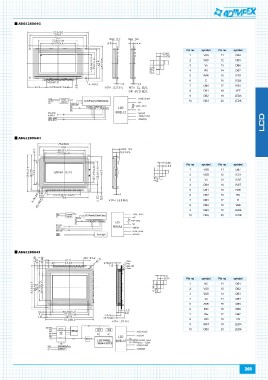

AB 2 0 4 Pin no symbol Pin no symbol
AB 2 0 4 1 VSS 11 DB4
AB 2 0 4 2 VDD 12 DB5
3 Vo 13 DB6
4 RS 14 DB7
5 R/W 15 /CS1
6 E 16 /CS2
7 DB0 17 /RST
8 DB1 18 VEE
9 DB2 19 LEDA
10 DB3 20 LEDK

Pin no symbol Pin no symbol
1 VSS 11 DB7
2 VDD 12 /CS1
3 Vo 13 /CS2
4 DB0 14 /RST
5 DB1 15 R/W
6 DB2 16 RS
7 DB3 17 E
8 DB4 18 VEE
9 DB5 19 LEDA
10 DB6 20 LEDK

Pin no symbol Pin no symbol
1 NC 11 DB1
2 VSS 12 DB2
3 VDD 13 DB3
4 Vo 14 DB4
5 /WR 15 DB5
6 /RD 16 DB6
7 /CE 17 DB7
8 /CD 18 FS
9 /RST 19 LEDA
10 DB0 20 LEDK
