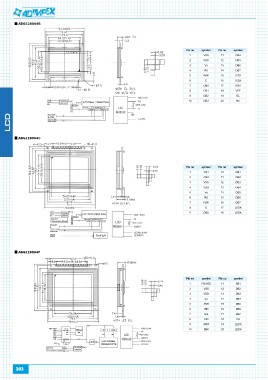

AB 2 0 4B Pin no symbol Pin no symbol
AB 2 0 4C 1 VSS 11 DB4
AB 2 0 4 2 VDD 12 DB5
3 Vo 13 DB6
202 4 RS 14 DB7
5 R/W 15 /CS1
6 E 16 /CS2
7 DB0 17 /RST
8 DB1 18 VEE
9 DB2 19 EL
10 DB3 20 NC

Pin no symbol Pin no symbol
1 CS1 10 DB1
2 CS2 11 DB2
3 VSS 12 DB3
4 VDD 13 DB4
5 Vo 14 DB5
6 RS 15 DB6
7 R/W 16 DB7
8 E 17 LEDA
9 DB0 18 LEDK

Pin no symbol Pin no symbol
1 FG/VEE 11 DB1
2 12 DB2
3 VSS 13 DB3
4 VDD 14 DB4
5 Vo 15 DB5
6 /WR 16 DB6
7 /RD 17 DB7
8 /CE 18 FS
9 C/D 19 LEDA
10 /RST 20 LEDK
DB0
