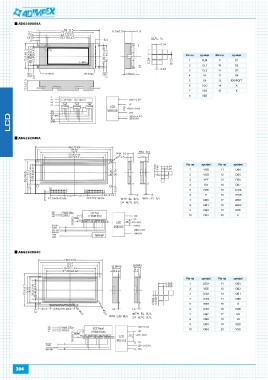

ABG160064A Pin no symbol Pin no symbol
ABG192048A 1 FLM 9 D1
ABG192064C 2 CL1 10 D2
3 CL2 11 D3
204 4 M 12 D4
5 V0 13
6 VCC 14 /DISPOFF
7 VSS 15 A
8 VEE K

Pin no symbol Pin no symbol
1 VSS 11 DB4
2 VDD 12 DB5
3 VEE 13 DB6
4 RS 14 DB7
5 R/W 15 LEDA
6 E 16 LEDK
7 DB0 17 LED1
8 DB1 18 LED2
9 DB2 19 R/W
10 DB3 20 E

Pin no symbol Pin no symbol
1 LED+ 11 DB3
2 VEE 12 DB2
3 /CS3 13 DB1
4 /CS2 14 DB0
5 /RST 15 E
6 /CS1 16 R/W
7 DB7 17 RS
8 DB6 18 V0
9 DB5 19 VDD
10 DB4 20 VSS
