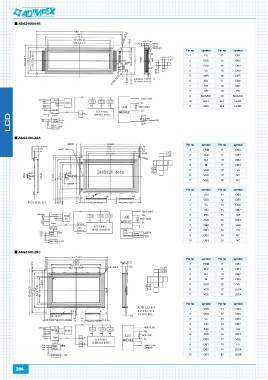

Page 206 - Catalogo Adimpex 2016

ABG240064B Pin no symbol Pin no symbol
ABG240128A 1 FG 12 DB1
ABG240128C 2 VSS 13 DB2
3 VDD 14 DB3
206 4 V0 15 DB4
5 /WR 16 DB5
6 /RD 17 DB6
7 /CE 18 DB7
8 C/D 19 FS
9 20
10 NC/VEE EL1 NC/VEE
11 /RST EL2 LEDA
DB0 LEDK

Pin no symbol Pin no symbol
1' FRM 8' DB0
2' CL2 9' DB1
3' CL1 10' DB2
4' M 11' DB3
5' VDD 12' V0
6' VSS 13' NC
7' VEE 14' NC

Pin no symbol Pin no symbol
1 VSS 11 DB4
2 VDD 12 DB5
3 Vo 13 DB6
4 C/D 14 DB7
5 /RD 15 /CE
6 /WR 16 /RST
7 DB0 17 VEE
8 DB1 18 FS
9 DB2 19 NC
10 DB3 20 NC

Pin no symbol Pin no symbol
1' FRM 8' DB0
2' CL2 9' DB1
3' CL1 10' DB2
4' M 11' DB3
5' VDD 12' V0
6' VSS 13' LEDA
7' VEE 14' LEDK

Pin no symbol Pin no symbol
1 VSS 11 DB4
2 VDD 12 DB5
3 Vo 13 DB6
4 C/D 14 DB7
5 /RD 15 /CE
6 /WR 16 /RST
7 DB0 17 VEE
8 DB1 18 FS
9 DB2 19 LEDA
10 DB3 20 LEDK
