P. 201

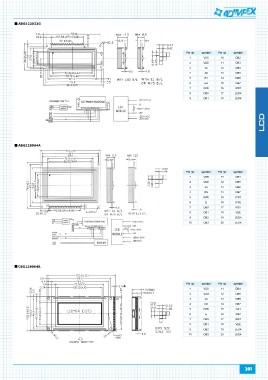

AB 220 2 Pin no symbol Pin no symbol
AB 2 0 4A 1 VSS 10 DB2
CB 2 0 4A 2 VDD 11 DB3
3 Vo 12 DB4
4 A0 13 DB5
5 E1 14 DB6
6 E2 15 DB7
7 R/W 16 /RST
8 DB0 17 LEDA
9 DB1 18 LEDK
Pin no symbol Pin no symbol
1 VSS 11 DB4
2 VDD 12 DB5
3 Vo 13 DB6
4 RS 14 DB7
5 R/W 15 /CS1
6 E 16 /CS2
7 DB0 17 /RST
8 DB1 18 VEE
9 DB2 19 LEDA
10 DB3 20 LEDK
Pin no symbol Pin no symbol
1 VSS 11 DB4
2 VDD 12 DB5
3 Vo 13 DB6
4 D/I 14 DB7
5 R/W 15 CS1
6 E 16 CS2
7 DB0 17 /RST
8 DB1 18 VEE
9 DB2 19 LEDA
10 DB3 20 LEDK
201
