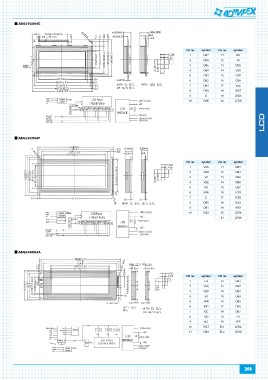

ABG192064 Pin no symbol Pin no symbol
ABG192064 1 DB7 11 RS
ABG240064A 2 DB6 12 V0
3 DB5 13 VDD
4 DB4 14 VSS
5 DB3 15 CSB
6 DB2 16 CSA
7 DB1 17 VEE
8 DB0 18 /RST
9 E 19
10 R/W 20 LEDA
LEDK

Pin no symbol Pin no symbol
1 VSS 11 DB3
2 VDD 12 DB4
3 V0 13 DB5
4 VEE 14 DB6
5 RS 15 DB7
6 R/W 16 /CS3
7 E 17 /CS2
8 DB0 18 /CS1
9 DB1 19 /RST
10 DB2 20 LEDA
21 LEDK

Pin no symbol Pin no symbol
1 FG 12 DB1
2 VSS 13 DB2
3 VDD 14 DB3
4 V0 15 DB4
5 /WR 16 DB5
6 /RD 17 DB6
7 /CE 18 DB7
8 C/D 19 FS
9 NC 20 VEE
10 /RST EL1 LEDA
11 DB0 EL2 LEDK

205
