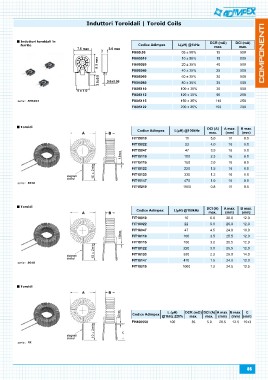

Page 85 - Catalogo Adimpex 2016

Induttori Toroidali | Toroid Coils

Induttori toroidali in Codice Adimpex L(µH) @1kHz DCR (mΩ) DCI (mA)
ferrite max. max.
FI605.80 08 ± 50% 15 500
serie: EMC421 FI605010 10 ± 50% 15 500
Toroidi FI605020 20 ± 35% 40 500
FI605040 40 ± 35% 25 500
serie: 5018 FI605060 60 ± 35% 30 500
Toroidi FI605080 80 ± 35% 35 500
FI605110 100 ± 35% 35 500
serie: 8018 FI605112 120 ± 35% 95 250
Toroidi FI605115 150 ± 35% 110 250
FI605122 200 ± 25% 150 200
serie: TR
Codice Adimpex L(µH) @100kHz DCI (A) A max. B max.
max. (mm) (mm)
FIT15010 10 5.0
FIT15022 22 4.0 16 8.0
FIT15047 47 3.5 16 8.0
FIT15110 100 2.3 16 8.0
FIT15115 150 2.0 16 8.0
FIT15122 220 1.5 16 8.0
FIT15133 330 1.2 16 8.0
FIT15147 470 1.0 16 8.0
FIT15210 1000 0.8 16 8.0
16 8.5

Codice Adimpex L(µH) @100kHz DCI (A) A max. B max.
max. (mm) (mm)
FIT18010 10 6.0 26.0 12.0
FIT18022 22 5.0 26.0 12.0
FIT18047 47 4.5 24.0 10.0
FIT18110 100 3.5 25.5 12.0
FIT18115 150 3.2 25.5 12.0
FIT18122 220 3.0 25.5 12.0
FIT18133 330 2.2 25.0 14.0
FIT18147 470 1.5 24.0 13.0
FIT18210 1000 1.2 24.5 13.5

Codice Adimpex L (µH) DCR (mΩ) DCI (A) A max. B max. C
@1kHz ±20% max. max. (mm) (mm) (mm)

FH400550 100 35 5.0 26.5 12.5 15±3

85
