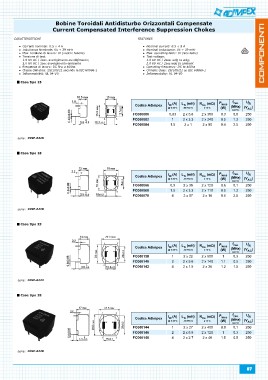

Page 87 - Catalogo Adimpex 2016

Bobine Toroidali Antidisturbo ri ontali Compensate
Current Compensated Interference Suppression Chokes

CARATTERISTICHE FEATURES

Correnti nominali: 0.5 ÷ 4 A Nominal current: 0.5 ÷ 8 A
Induttanza Nominale: 05 ÷ 39 mHr Nominal Inductance: 05 ÷ 39 mHr
Max. tensione di lavoro: Ur (vedere tabelle) Max. operating table: Ur (See table)
Tensione di test: Test voltage:
1.8 KV AC / 2sec. avvolgimento-avvolgimento; 1.8 KV AC / 2sec. wdg to wdg;
2.0 KV AC / 2sec avvolgimento-ambiente 2.0 KV AC / 2sec wdg to ambient
Frequenza di lavoro: DC fino a 400hz Operating frequency: DC to 400hz
Classe climatica: 25/100/21 secondo le IEC 60068-1 Climatic class: 25/100/21 as IEC 60068-1
Infiammabilità: UL 94-V0 Infiammability: UL 94-V0

Case tipo 1

Codice Adimpex IN (A) LN (mH) RCu (mΩ) Ploss fres. UR
(W) (MHz) (VAC)
FC000080 @ θ 40°C -30/+50 % ± 10 %
FC000082 0.3 approx 250
FC000084 0.63 2 x 5.6 2 x 380 0.5 250
1 2 x 3.3 2 x 240 0.4 0.8 250
1.5 2x1 2 x 90
1.2

2.5

serie: CCSP-621
Case tipo 1

Codice Adimpex IN (A) LN (mH) RCu (mΩ) Ploss fres. UR
(W) (MHz) (VAC)
FC000066 @ θ 40°C -30/+50 % ± 10 %
FC000068 0.6 approx 250
FC000070 0.5 2 x 39 2 x 120 0.5 250
1.5 2 x 3.3 2 x 110 0.6 0.1 250
4 2 x 07 2 x 18
1.2

2.5

serie: CCSP-621
Case tipo 23

Codice Adimpex IN (A) LN (mH) RCu (mΩ) Ploss fres. UR
@ θ 40°C -30/+50 % ± 10 % (W) (MHz) (VAC)
FC000138
FC000140 1 2 x 22 2 x 500 1 approx 250
FC000142 2 2 x 5.6 2 x 140 1.1 250
4 2 x 1.5 2 x 36 1.2 0.3 250

0.5

1.5

serie: CCSP-6223
Case tipo 2

Codice Adimpex IN (A) LN (mH) RCu (mΩ) Ploss fres. UR
(W) (MHz) (VAC)
FC000144 @ θ 40°C -30/+50 % ± 10 %
FC000146 0.8 approx 250
FC000148 1 2 x 27 2 x 400 1 250
2 2 x 6.8 2 x 120 1.5 0.1 250
4 2 x 2.7 2 x 48
0.3

0.5

serie: CCSP-622
