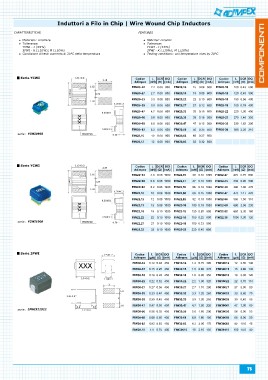

Induttori a Filo in Chip | Wire Wound Chip Inductors
CARATTERISTICHE FEATURES
Materiale: ceramica Material: ceramic
Tolleranza: Tolerance:
YCWI - J (±5%) YCWI - J (±5%)
2FWI - K (±10%); M (±20%) 2FWI - K (±10%); M (±20%)
Condizione di test: aumento di 20°C della temperatura Testing conditions: coil temperature rises by 20°C
Serie YCWI Codice L DCR DCI Codice L DCR DCI Codice L DCR DCI
serie: YCWI0805 Adimpex (nH) (Ω) (mA) Adimpex (nH) (Ω) (mA) Adimpex (nH) (Ω) (mA)
FIW20+22 2.2 0.06 800 FIW20,15 15 0.08 600 FIW20-10 100 0.43 500
FIW20+27 2.7 0.08 800 FIW20,18 18 0.08 600 FIW20-12 120 0.48 500
FIW20+33 3.3 0.08 800 FIW20,22 22 0.10 600 FIW20-15 150 0.56 400
FIW20+39 3.9 0.06 600 FIW20,27 27 0.12 600 FIW20-18 180 0.78 400
FIW20+47 4.7 0.06 600 FIW20,33 33 0.15 500 FIW20-22 220 1.00 400
FIW20+56 5.6 0.08 600 FIW20,39 39 0.18 500 FIW20-27 270 1.46 350
FIW20+68 6.8 0.06 600 FIW20,47 47 0.15 500 FIW20-33 330 1.65 300
FIW20+82 8.2 0.06 600 FIW20,56 56 0.25 500 FIW20-39 390 2.20 210
FIW20,10 10 0.08 600 FIW20,68 68 0.27 500
FIW20,12 12 0.08 600 FIW20,82 82 0.32 500
Serie YCWI Codice L DCR DCI Codice L DCR DCI Codice L DCR DCI
serie: YCWI1008 Adimpex (nH) (Ω) (mA) Adimpex (nH) (Ω) (mA) Adimpex (nH) (Ω) (mA)
FIW22+33 3.3 0.06 1000 FIW22,39 39 0.10 1000 FIW22-27 270 0.75 600
FIW22+68 6.8 0.06 1000 FIW22,47 47 0.10 1000 FIW22-33 330 0.90 500
FIW22+82 8.2 0.06 1000 FIW22,56 56 0.12 1000 FIW22-39 390 1.06 470
FIW22,10 10 0.08 1000 FIW22,68 68 0.15 1000 FIW22-47 470 1.17 420
FIW22,12 12 0.08 1000 FIW22,82 82 0.18 1000 FIW22-56 560 1.50 310
FIW22,15 15 0.08 1000 FIW22-10 100 0.18 1000 FIW22-68 680 2.06 230
FIW22,18 18 0.10 1000 FIW22-12 120 0.20 800 FIW22-82 820 2.30 180
FIW22,22 22 0.10 1000 FIW22-15 150 0.22 800 FIW22.10 1000 3.30 120
FIW22,27 27 0.10 1000 FIW22-18 180 0.33 800
FIW22,33 33 0.10 1000 FIW22-22 220 0.45 800
Serie 2FWI Codice L DCR DCI Codice L DCR DCI Codice L DCR DCI
serie: 2FWI322522 Adimpex (µH) (Ω) (mA) Adimpex (µH) (Ω) (mA) Adimpex (µH) (Ω) (mA)
FIW30-12 0.12 0.22 450 FIW30.12 1.2 0.75 390 FIW30012
12 2.50 140
FIW30-15 0.15 0.25 450 FIW30.15 1.5 0.85 370 FIW30015 15 2.80 130
FIW30-18 0.18 0.28 450 FIW30.18 1.8 0.90 350 FIW30018 18 3.30 120
FIW30-22 0.22 0.32 450 FIW30.22 2.2 1.00 320 FIW30022 22 3.70 110
FIW30-27 0.27 0.36 450 FIW30.27 2.7 1.10 290 FIW30027 27 5.00 80
FIW30-33 0.33 0.40 450 FIW30.33 3.3 1.20 260 FIW30033 33 5.60 70
FIW30-39 0.39 0.45 450 FIW30.39 3.9 1.30 250 FIW30039 39 6.40 65
FIW30-47 0.47 0.50 450 FIW30.47 4.7 1.50 220 FIW30047 47 7.00 60
FIW30-56 0.56 0.55 450 FIW30.56 5.6 1.60 200 FIW30056 56 8.00 55
FIW30-68 0.68 0.60 450 FIW30.68 6.8 1.80 180 FIW30068 68 9.00 50
FIW30-82 0.82 0.65 450 FIW30.82 8.2 2.00 170 FIW30082 82 10.0 45
FIW30.10 1.0 0.70 400 FIW30010 10 2.10 150 FIW30110 100 10.0 40
