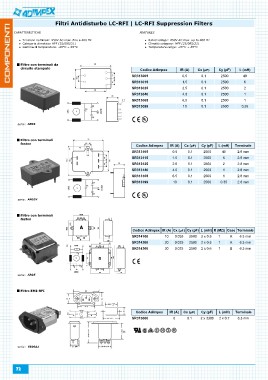

Page 72 - Catalogo Adimpex 2016

Filtri Antidisturbo LC-RFI | LC-RFI Suppression Filters

CARATTERISTICHE FEATURES

Tensione nominale: 250V AC max. fino a 400 Hz Rated voltage: 250V AC max. up to 400 Hz
Categoria climatica: HPF (25/085/21) Climatic category: HPF (25/085/21)
Gamma di temperatura: -25°C ÷ 85°C Temperature range: -25°C ÷ 85°C

Filtro con terminali da Codice Adimpex IR (A) Cx (µF) Cy (pF) L (mH)
circuito stampato SR313005 0.5 0.1 2500 40
SR313015 1.5 0.1 2500 6
SR313025 2.5 0.1 2500 2
SR313040 4.0 0.1 2500 1
SR313065 6.5 0.1 2500 1
SR313099 10 0.1 2500 0.35

serie: AR02 Codice Adimpex IR (A) Cx (µF) Cy (pF) L (mH) Terminale
SR313105 0.5 0.1 2500 40 2.8 mm
Filtro con terminali SR313115 1.5 0.1 2500 6 2.8 mm
faston SR313125 2.5 0.1 2500 2 2.8 mm
SR313140 4.0 0.1 2500 1 2.8 mm
SR313165 6.5 0.1 2500 1 2.8 mm
SR313199 10 0.1 2500 0.35 2.8 mm

serie: AR02V

Filtro con terminali
faston

Codice Adimpex IR (A) Cx (µF) Cy (pF) L (mH) R (MΩ) Case Terminale

SR314100 10 0.033 2500 2 x 0.5 1 A 6.3 mm

SR314200 20 0.033 2500 2 x 0.5 1 A 6.3 mm

SR314300 30 0.033 2500 2 x 0.6 1 B 6.3 mm

serie: AR25
Filtro EMI-RFI

Codice Adimpex IR (A) Cx (µF) Cy (pF) L (mH) Terminale
SR315060 6 0.1 2 x 3300 2 x 0.7 6.3 mm

serie: YB06A1
