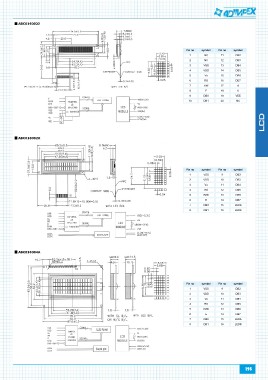

P. 195
ABC016002 Pin no symbol Pin no symbol
ABC016002 1 NC 11 DB2
ABC01600 A 2 NC 12 DB3
3 VSS 13 DB4
4 VDD 14 DB5
5 Vo 15 DB6
6 RS 16 DB7
7 RW 17 A
8 E 18 K
9 DB0 19 VEE
10 DB1 20 NC
Pin no symbol Pin no symbol
1 VSS 9 DB2
2 VDD 10 DB3
3 Vo 11 DB4
4 RS 12 DB5
5 R/W 13 DB6
6 E 14 DB7
7 DB0 15 LEDA
8 DB1 16 LEDK
Pin no symbol Pin no symbol
1 VSS 9 DB2
2 VDD 10 DB3
3 Vo 11 DB4
4 RS 12 DB5
5 R/W 13 DB6
6 E 14 DB7
7 DB0 15 LEDA
8 DB1 16 LEDK
195
