P. 193

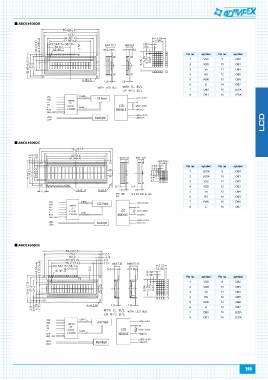

ABC01 002B Pin no symbol Pin no symbol
ABC01 002C 1 VSS 9 DB2
ABC01 002E 2 VDD 10 DB3
3 Vo 11 DB4
4 RS 12 DB5
5 R/W 13 DB6
6 E 14 DB7
7 DB0 15 LEDA
8 DB1 16 LEDK
Pin no symbol Pin no symbol
1 LEDK 9 DB0
2 LEDA 10 DB1
3 VSS 11 DB2
4 VDD 12 DB3
5 13 DB4
6 Vo 14 DB5
7 RS 15 DB6
8 R/W 16 DB7
E
Pin no symbol Pin no symbol
1 VSS 9 DB2
2 VDD 10 DB3
3 Vo 11 DB4
4 RS 12 DB5
5 R/W 13 DB6
6 E 14 DB7
7 DB0 15 LEDA
8 DB1 16 LEDK
193
