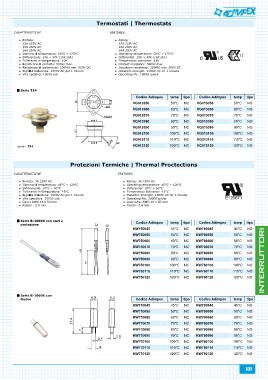

Page 521 - Catalogo Adimpex 2016

Termostati | Thermostats

CARATTERISTICHE FEATURES

Portata: Rating:
12A 125V AC 12A 125V AC
10A 250V AC 10A 250V AC
16A 250V AC 16A 250V AC
Gamma di temperatura: 50°C ÷ 175°C Operating temperature: 50°C ÷ 175°C
Differenziale: 10K ÷ 30K (15K std.) Differential: 10K ÷ 30K (15K std.)
Tolleranza in temperatura: ±3K Temperature tolerance: ±3K
Resistenza di contatto: 50mΩ max. Contact resistance: 50mΩ max.
Resistenza di isolamento: 100MΩ min. 500V DC Insulation resistance: 100MΩ min. 500V DC
Rigidità dielettrica: 1000V AC per 1 minuto Dielectric strenght: 1000V AC for 1 minute
Vita oprativa: 10000 cicli Operating life: 10000 cycles

Serie T24 Codice Adimpex temp tipo Codice Adimpex temp tipo
serie: T24 VG012050 50°C NC VG013050 50°C NO
VG012060 60°C NC VG013060 60°C NO
VG012070 70°C NC VG013070 70°C NO
VG012080 80°C NC VG013080 80°C NO
VG012090 90°C NC VG013090 90°C NO
VG012100 100°C NC VG013100 100°C NO
VG012110 110°C NC VG013110 110°C NO
VG012120 120°C NC VG013120 120°C NO

Protezioni Termiche | Thermal Proctections

CARATTERISTICHE FEATURES

Portata: 3A 250V AC Rating: 3A 250V AC
Gamma di temperatura: 45°C ÷ 120°C Operating temperature: 45°C ÷ 120°C
Differenziale: 10°C ÷ 50°C Differential: 10°C ÷ 50°C
Tolleranza in temperatura: ±5°C Temperature tolerance: ±5°C
Rigidità dielettrica: 1500V AC per 1 minuto Dielectric strenght: 1500V AC for 1 minute
Vita operativa: 10000 cicli Operating life: 10000 cycles
Cavo: AWG 18 x 50 mm Lead wire: AWG 18 x 50 mm
Faston : 2.8 mm Faston: 2.8 mm

Serie B-1009X con cavi e Codice Adimpex temp tipo Codice Adimpex temp tipo
protezione KW750045 45°C NC KW760045 45°C NO
KW750050 50°C NC KW760050 50°C NO
KW750060 60°C NC KW760060 60°C NO
KW750070 70°C NC KW760070 70°C NO
KW750080 80°C NC KW760080 80°C NO
KW750090 90°C NC KW760090 90°C NO
KW750100 100°C NC KW760100 100°C NO
KW750110 110°C NC KW760110 110°C NO
KW750120 120°C NC KW760120 120°C NO

Serie B-1009X con Codice Adimpex temp tipo Codice Adimpex temp tipo
faston KW770045 45°C NC KW780045 45°C NO
KW770050 50°C NC KW780050 50°C NO
KW770060 60°C NC KW780060 60°C NO
KW770070 70°C NC KW780070 70°C NO
KW770080 80°C NC KW780080 80°C NO
KW770090 90°C NC KW780090 90°C NO
KW770100 100°C NC KW780100 100°C NO
KW770110 110°C NC KW780110 110°C NO
KW770120 120°C NC KW780120 120°C NO
