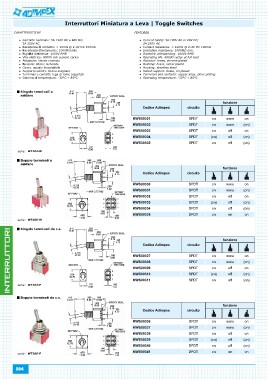

P. 504
Interruttori iniatura a Leva | Toggle Switches
CARATTERISTICHE FEATURES
Corrente nominale: 5A 120V AC o 28V DC Current rating: 5A 120V AC or 28V DC;
2A 250V AC 2A 250V AC
Resistenza di contatto: < 10mΩ @ 2-4V DC 100mA Contact resistance: < 10mΩ @ 2-4V DC 100mA
Resistenza d'isolamento: 1000MΩ min. Insulation resistance: 1000MΩ min.
Rigidità dielettrica: 1000V RMS Dielectric withstanding: 1000V RMS
Vita elettrica: 40000 cicli a pieno carico Operating life: 40000 cycles at full load
Attuatore: ottone cromato Actuator: brass, chrome plated
Bussola: ottone nichelato Bushing: brass, nickel plated
Corpo: acciaio inossidabile Housing: stainless steel
Supporto switch: ottone stagnato Switch support: brass, tin plated
Terminali e contatti: lega di rame argentati Terminals and contacts: copper alloy, silver plating
Gamma di temperatura: -30°C ÷ 85°C Operating temperature: -30°C ÷ 85°C
Singolo terminali a funzione
saldare
Codice Adimpex circuito on none on
serie: WT1 3-W
Doppio terminali a KWS00301 SPDT on none (on)
saldare KWS00302 SPDT
KWS00303 SPDT on off on
serie: WT1 6-W KWS00304 SPDT
Singolo terminali da c.s. KWS00305 SPDT (on) off (on)
serie: WT1 3-P on off (on)
Doppio terminali da c.s.
funzione
serie: WT1 6-P
Codice Adimpex circuito on none on
KWS00330 DPDT on none (on)
KWS00331 DPDT
KWS00332 DPDT on off on
KWS00333 DPDT
KWS00334 DPDT (on) off (on)
KWS00335 DPDT
on off (on)
on on on
funzione
Codice Adimpex circuito on none on
KWS00307 SPDT on none (on)
KWS00308 SPDT
KWS00309 SPDT on off on
KWS00310 SPDT
KWS00311 SPDT (on) off (on)
on off (on)
funzione
Codice Adimpex circuito on none on
KWS00336 DPDT on none (on)
KWS00337 DPDT
KWS00338 DPDT on off on
KWS00339 DPDT
KWS00340 DPDT (on) off (on)
KWS00341 DPDT
on off (on)
on on on
504
