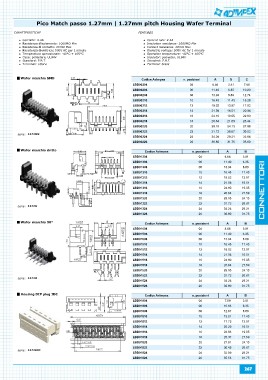

Page 267 - Catalogo Adimpex 2016

ico Match passo .2 mm | .2 mm pitch o sin afer erminal

CARATTERISTICHE FEATURES

Corrente: 2.4A Current rate: 2.4A
Resistenza d'isolamento: 1000MΩ Min Insulation resistance: 1000MΩ Min
Resistenza di contatto: 20mΩ Max Contact resistance: 20mΩ Max
Resistenza dielettrica: 500V AC per 1 minuto Dielectric voltage: 500V AC for 1 minute
Temperatura operazionale: -40°C ÷ 105°C Operation temperature: -40°C ÷ 105°C
Case: poliestere, UL94V Insulator: polyester, UL94V
Standard: P.B.T. Standard: P.B.T.
Terminali: ottone Terminal: rass

afer maschio SMD Codice Adimpex n. posizioni A B C
LBD00204 04 8.86 3.81 7.66
serie: MS LBD00206 06 11.40 6.35 10.20
LBD00208 08 13.94 8.89 12.74
LBD00210 10 16.48 11.43 15.28
LBD00212 12 19.02 13.97 17.82
LBD00214 14 21.56 16.51 20.36
LBD00216 16 24.10 19.05 22.90
LBD00218 18 26.64 21.59 25.44
LBD00220 20 29.18 24.13 27.98
LBD00222 22 31.72 26.67 30.52
LBD00224 24 34.26 29.21 33.06
LBD00226 26 36.80 31.75 35.60

afer maschio dritto Codice Adimpex n. posizioni A B
LBD01304 04 8.86 3.81
serie: S LBD01306 06 11.40 6.35
LBD01308 08 13.94 8.89
LBD01310 10 16.48 11.43
LBD01312 12 19.02 13.97
LBD01314 14 21.56 16.51
LBD01316 16 24.10 19.05
LBD01318 18 26.64 21.59
LBD01320 20 29.18 24.13
LBD01322 22 31.72 26.67
LBD01324 24 34.26 29.21
LBD01326 26 36.80 31.75

afer maschio Codice Adimpex n. posizioni A B
LBD01504 04 8.86 3.81
serie: LBD01506 06 11.40 6.35
o sin D pl D LBD01508 08 13.94 8.89
LBD01510 10 16.48 11.43
LBD01512 12 19.02 13.97
LBD01514 14 21.56 16.51
LBD01516 16 24.10 19.05
LBD01518 18 26.64 21.59
LBD01520 20 29.18 24.13
LBD01522 22 31.72 26.67
LBD01524 24 34.26 29.21
LBD01526 26 36.80 31.75

serie: I Codice Adimpex n. posizioni A B
LBD01804 04 7.59 3.81
LBD01806 06 10.13 6.35
LBD01808 08 12.67 8.89
LBD01810 10 15.21 11.43
LBD01812 12 17.75 13.97
LBD01814 14 20.29 16.51
LBD01816 16 22.83 19.05
LBD01818 18 25.37 21.59
LBD01820 20 27.91 24.13
LBD01822 22 30.45 26.67
LBD01824 24 32.99 29.21
LBD01826 26 35.53 31.75
