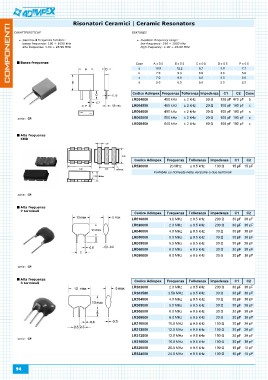

Page 94 - Catalogo Adimpex 2016

Risonatori Ceramici | Ceramic Resonators

CARATTERISTICHE FEATURES

Gamma di frequenza fornibile: Available frequency range:
bassa frequenza: 190 ÷ 1050 kHz low frequency: 190 ÷ 1050 kHz
alta frequenza: 1.00 ÷ 25.99 MHz high frequency: 1.00 ÷ 25.99 MHz

Bassa frequenza Case A ± 0.5 B ± 0.5 C ± 0.5 D ± 0.5 P ± 0.5
a 10.8 12.2 6.7 3.8 7.7
serie: CR b 7.9 9.3 6.0 3.6 5.0
Alta frequenza c 7.0 9.0 6.0 3.5 5.0
SMD d 5.0 6.5 5.0 2.5 2.5

Codice Adimpex Frequenza Tolleranza Impedenza C1 C2 Case

LR004000 400 kHz ± 2 kHz 20 Ω 120 pF 470 pF b

LR004550 455 kHz ± 2 kHz 20 Ω 100 pF 100 pF c

LR004800 480 kHz ± 2 kHz 20 Ω 100 pF 100 pF c

LR005000 500 kHz ± 2 kHz 20 Ω 100 pF 100 pF c

LR006400 640 kHz ± 2 kHz 50 Ω 100 pF 100 pF c

Codice Adimpex Frequenza Tolleranza Impedenza C1 C2

LR520000 20 MHz ± 0.5 kHz 100 Ω 15 pF 15 pF

Fornibile su richiesta nella versione a due terminali

serie: CR Codice Adimpex Frequenza Tolleranza Impedenza C1 C2
Alta frequenza LR010000 1.0 MHz ± 0.5 kHz 200 Ω 30 pF 30 pF
2 terminali LR020000 2.0 MHz ± 0.5 kHz 200 Ω 30 pF 30 pF
LR040000 4.0 MHz ± 0.5 kHz 30 Ω 30 pF 30 pF
serie: CR LR050000 5.0 MHz ± 0.5 kHz 30 Ω 30 pF 30 pF
Alta frequenza LR055000 5.5 MHz ± 0.5 kHz 30 Ω 30 pF 30 pF
3 terminali LR060000 6.0 MHz ± 0.5 kHz 30 Ω 30 pF 30 pF
LR080000 8.0 MHz ± 0.5 kHz 30 Ω 30 pF 30 pF
serie: CR
Codice Adimpex Frequenza Tolleranza Impedenza C1 C2
94 LR302000 2.0 MHz ± 0.5 kHz 200 Ω 30 pF 30 pF
LR303580 3.58 MHz ± 0.5 kHz 30 Ω 30 pF 30 pF
LR304000 4.0 MHz ± 0.5 kHz 30 Ω 30 pF 30 pF
LR305000 5.0 MHz ± 0.5 kHz 30 Ω 30 pF 30 pF
LR306000 6.0 MHz ± 0.5 kHz 30 Ω 30 pF 30 pF
LR308000 8.0 MHz ± 0.5 kHz 30 Ω 30 pF 30 pF
LR310000 10.0 MHz ± 0.5 kHz 150 Ω 30 pF 30 pF
LR312000 12.0 MHz ± 0.5 kHz 150 Ω 30 pF 30 pF
LR312500 12.5 MHz ± 0.5 kHz 150 Ω 30 pF 30 pF
LR316000 16.0 MHz ± 0.5 kHz 150 Ω 30 pF 30 pF
LR320000 20.0 MHz ± 0.5 kHz 100 Ω 15 pF 15 pF
LR324000 24.0 MHz ± 0.5 kHz 100 Ω 15 pF 15 pF
