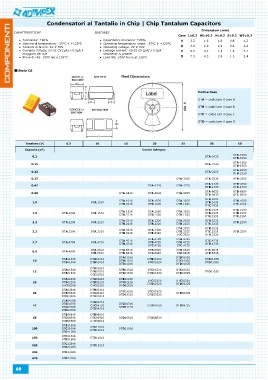

Condensatori al Tantalio in Chip | Chip Tantalum Capacitors

CARATTERISTICHE FEATURES Dimensioni (mm)
Case L±0.2 W1±0.2 H±0.2 S±0.2 W2±0.2
Tolleranza: ±20% Capacitance tolerance: ±20%
Gamma di temperatura: -55°C ÷ +125°C Operating temperature range: -55°C ÷ +125°C A 3.2 1.6 1.6 0.8 1.2
Tensioni di lavoro: 4V ÷ 50V Operating voltage: 4V ÷ 50V B 3.5 2.8 1.9 0.8 2.2
Corrente di fuga: ≤0.01 CV [µA] o 0.5µA il Leakege current: ≤0.01 CV [µA] o 0.5µA C 6.0 3.2 2.5 1.3 2.2
maggiore dei due whichever is greater D 7.3 4.3 2.8 1.3 2.4
Prove di vita: 1000 ore a 125°C Load life: 1000 hours at 125°C

Serie CS

Codice Case
DTA = codici per il case A
DTB = codici per il case B
DTC = codici per il case C
DTD = codici per il case D

Tensione (V) 6.3 10 16 20 25 35 50
Capacità (uF) Codice Adimpex
DTA.1506 DTA.1010 DTA-1035 DTA-1050
0.1 DTA-6816 DTA-4720 DTA-3325 DTB-1050
0.15 DTA.2206 DTA.1510 DTA-1535 DTA-1550
0.22 DTA.1016 DTA-6820 DTA-4725 DTB-1550
0.33 DTA.3306 DTA.2210 DTB.1016 DTA-2235 DTA-2250
0.47 DTA.1020 DTA-6825 DTB-2250
0.68 DTA.4706 DTA.3310 DTA.1516 DTB.1020 DTA-3335 DTB-3350
1.0 DTB.1516 DTA.1025 DTA-4735 DTB-4750
DTA.6806 DTA.4710 DTA.1520 DTB.1025 DTB-4735 DTC-4750
1.5 DTA01006 DTA.6810 DTA.2216 DTB.1520 DTA-6835 DTB-6850
2.2 DTB01006 DTB.6810 DTB.2216 DTA.2220 DTA.1525 DTB-6835 DTC-6850
3.3 DTA01506 DTA01010 DTB.2220 DTB.1525 DTA.1035
DTB01506 DTB01010 DTA.3316 DTA.3320 DTB.1035 DTB.1050
4.7 DTA02206 DTA01510 DTB.3316 DTB.3320 DTA.2225 DTC.1035 DTC.1050
6.8 DTB02206 DTB01510 DTA.4720 DTB.2225 DTA.1535
10 DTC02206 DTC01510 DTA.4716 DTB.4720 DTA.3325 DTB.1535 DTA.1550
DTA03306 DTA02210 DTB.4716 DTC.4720 DTB.3325 DTC.1535 DTB.1550
15 DTB03306 DTB02210 DTB.6820 DTC.3325 DTB.2235 DTC.1550
DTC03306 DTC02210 DTA.6816 DTC.6820 DTA.4725 DTC.2235
22 DTA04706 DTB03310 DTB.6816 DTB01020 DTB.4725 DTB.3335 DTD.2250
DTB04706 DTC03310 DTA01016 DTC01020 DTC.4725 DTC.3335
33 DTC04706 DTD03310 DTB01016 DTB.6825 DTD.3335 DTD.3350
DTD04706 DTB04710 DTC01016 DTC01520 DTC.6825
47 DTB06806 DTC04710 DTD01520 DTB01025 DTC.4735
DTC06806 DTD04710 DTB01516 DTC01025 DTD.4735
68 DTD06806 DTB06810 DTC01516 DTC02220 DTD01025
DTB11006 DTC06810 DTD02220 DTC.6835
100 DTC11006 DTD06810 DTB02216 DTC01525 DTD.6835
150 DTD11006 DTC11010 DTC02216 DTC03320 DTD01525
220 DTC11506 DTD11010 DTD02216 DTD03320 DTC01035
330 DTD11506 DTD11510 DTC02225 DTD01035
470 DTC12206 DTD12210 DTC03316 DTD04720 DTD02225
DTD12206 DTD03316 DTD01535
60 DTD13306 DTD06820 DTD03325
DTD14706 DTC04716
DTD04716 DTD04725

DTD06816

DTD11016
