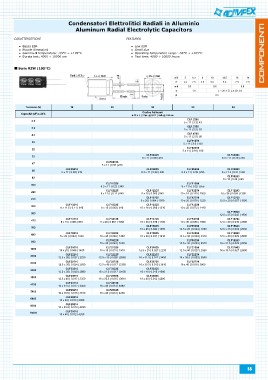

Page 55 - Catalogo Adimpex 2016

Condensatori Elettrolitici Radiali in Alluminio
Aluminum Radial Electrolytic Capacitors

CARATTERISTICHE FEATURES

assa o ESR
icco e dimensioni Small si e
Gamma di temperatura: -55°C ÷ +105°C Operating temperature range: -55°C ÷ +105°C
Durata test: 4000 ÷ 10000 ore Test time: 4000 ÷ 10000 hours

Serie R (105°C)

ø D 5 6.3 8 10 12.5 16 18
P 2.0 2.5 3.5 5.0 5.0 7.5 7.5
ø d 0.5
α 1.0 0.6 0.8
β L < 20: 1.5; L ≥ 20: 2.0

0.5

Tensione (V) 16 25 35 50 63
Capacità (uF) ± 20% Codice Adimpex
CL 05616 CL 04725 ø D x L | Imp. @ 20°C | mA @ 100kHz CL .2250 CL 03363
2.2 5 x 11 | 0.58 | 210 5 x 11 | 0.58 | 210 5 x 11 | 3.3 | 43 6.3 x 11 | 0.49 | 265
3.3 CL 03335
4.7 CL 13316 5 x 11 | 0.58 | 210 CL .3350 CL 05663
10 8 x 11.5 | 0.11 | 640 5 x 11 | 2.9 | 53 8 x 11.5 | 0.31 | 500
22
33 CL 14716 CL .4750 CL 08263
47 8 x 15 | 0.083 | 840 5 x 11 | 2.5 | 95 8 x 15 | 0.22 | 665
56
82 CL 16816 CL 01050 CL 12263
100 8 x 20 | 0.064 | 1050 5 x 11 | 2.0 | 130 10 x 25 | 0.064 | 1350
220
270 CL 21016 CL 02250 CL 12763
330 10 x 20 | 0.046 | 1400 5 x 11 | 0.91 | 180 12.5 x 20 | 0.057 | 1500
390
470 CL 22216 CL 05635 CL 05650 CL 13963
560 12.5 x 25 | 0.027 | 2230 6.3 x 11 | 0.22 | 340 6.3 x 11 | 0.39 | 295 12.5 x 25 | 0.043 | 1900
680
820 CL 22716 CL 11025 CL 12235 CL 11050 CL 14763
1000 12.5 x 30 | 0.024 | 2650 6.3 x 11 | 0.22 | 340 8 x 15 | 0.083 | 840 8 x 11.5 | 0.22 | 555 12.5 x 30 | 0.039 | 2300
2200
2700 CL 23316 CL 12225 CL 12735 CL 12250 CL 15663
3300 12.5 x 35 | 0.020 | 2880 8 x 11.5 | 0.11 | 640 8 x 20 | 0.064 | 1050 10 x 16 | 0.110 | 1050 12.5 x 35 | 0.034 | 2500
3900
4700 CL 23916 CL 13325 CL 13335 CL 12750 CL 16863
5600 12.5 x 40 | 0.017 | 3350 8 x 15 | 0.083 | 840 10 x 16 | 0.060 | 1210 10 x 20 | 0.078 | 1220 12.5 x 40 | 0.029 | 2800
6800
8200 CL 24716 CL 13350 CL 18263
10000 16 x 31.5 | 0.017 | 3450 10 x 25 | 0.072 | 1440 16 x 31.5 | 0.029 | 2850

CL 25616 CL 14725 CL 14735 CL 14750 CL 21063
16 x 35.5 | 0.015 | 3610 8 x 20 | 0.064 | 1050 10 x 20 | 0.046 | 1400 10 x 30 | 0.056 | 1690 16 x 35.5 | 0.027 | 2900

CL 26816 CL 16825 CL 15635 CL 15650
16 x 40 | 0.013 | 4080 10 x 20 | 0.046 | 1400 10 x 25 | 0.042 | 1650 12.5 x 25 | 0.044 | 1950

CL 28216 CL 18225 CL 16835 CL 16850
18 x 35.5 | 0.014 | 4220 10 x 25 | 0.042 | 1650 10 x 30 | 0.031 | 1910 12.5 x 30 | 0.039 | 2310

CL 31016 CL 21025 CL 21035 CL 18250
18 x 40 | 0.012 | 4280 10 x 30 | 0.031 | 1910 12.5 x 25 | 0.027 | 2230 12.5 x 35 | 0.033 | 2510

CL 22225 CL 22235 CL 21050
12.5 x 35 | 0.020 | 2880 16 x 31.5 | 0.017 | 3450 12.5 x 40 | 0.027 | 2920

CL 22725 CL 22735 CL 22250
12.5 x 40 | 0.017 | 3350 16 x 35.5 | 0.015 | 3610 18 x 35.5 | 0.022 | 3680

CL 23325 CL 23335 CL 22750
16 x 31.5 | 0.017 | 3450 16 x 40 | 0.013 | 4080 18 x 40 | 0.018 | 3800

CL 23925 CL 23935
16 x 35.5 | 0.015 | 3610 18 x 40 | 0.012 | 4280

CL 24725
16 x 40 | 0.013 | 4080

CL 25625
18 x 40 | 0.012 | 4280
