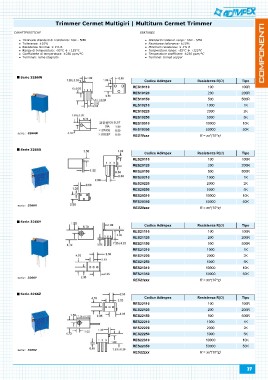

Page 27 - Catalogo Adimpex 2016

Trimmer Cermet Multigiri | Multiturn Cermet Trimmer

CARATTERISTICHE FEATURES

Intervallo standard di resistenza: 10Ω - 5MΩ Standard resitance range: 10Ω - 5MΩ
Tolleranza: ±10% Resistance tollerance: ±10%
Resistenza minima: ≤ 1% R Minimum resistance: ≤ 1% R
Range di temperatura: -55°C ÷ +125°C Temperature range: -55°C ÷ +125°C
Coefficiente di temperatura: ±250 ppm/°C Temperature coefficient: ±250 ppm/°C
Terminali: rame stagnato Terminal: tinned copper

Serie 3266W Codice Adimpex Resistenza R(Ω) Tipo
RES19110 100 100R
serie: 3266W RES19120 200 200R
Serie 3266X RES19150 500 500R
RES19210 1000
serie: 3266X RES19220 2000 1K
Serie 3266Y RES19250 5000 2K
RES19310 5K
serie: 3266Y RES19350 10000 10K
Serie 3266Z RES19zxx 50000 50K
R = xx*(10^z)
serie: 3266Z Codice Adimpex Tipo
RES20110 Resistenza R(Ω) 100R
RES20120 100 200R
RES20150 200 500R
RES20210 500
RES20220 1000 1K
RES20250 2000 2K
RES20310 5000 5K
RES20350 10K
RES20zxx 10000 50K
50000
Codice Adimpex R = xx*(10^z) Tipo
RES21110 100R
RES21120 Resistenza R(Ω) 200R
RES21150 100 500R
RES21210 200
RES21220 500 1K
RES21250 1000 2K
RES21310 2000 5K
RES21350 5000 10K
RES21zxx 50K
10000
Codice Adimpex 50000 Tipo
RES22110 R = xx*(10^z) 100R
RES22120 200R
RES22150 Resistenza R(Ω) 500R
RES22210 100
RES22220 200 1K
RES22250 500 2K
RES22310 1000 5K
RES22350 2000 10K
RES22zxx 5000 50K

10000 27
50000
R = xx*(10^z)
