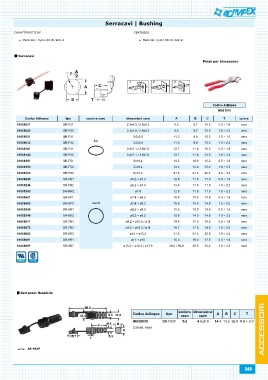

Page 563 - Catalogo Adimpex 2016

CARATTERISTICHE Serracavi | Bushing
Materiale: nylon 66 UL 94V-2
FEATURES
Serracavi Material: nylon 66 UL 94V-2

Pinza per bloccacavo

Codice Adimpex
IK601010

Codice Adimpex tipo sezione cavo dimensioni cavo A B CT colore
IK008021 SR-F21 flat 2.3x4.5 / 2.8x5.3 9.5 8.7 nero
IK008023 SR-F23 2.3x4.5 / 2.8x5.3 9.5 8.7 10.3 0.5 ÷ 1.6 nero
IK008031 SR-F31 round 11.2 9.9 nero
IK008032 SR-F32 3.0x5.6 11.0 9.9 10.3 1.8 ÷ 3.2 nero
IK008141 SR-F41 3.0x5.6 12.7 11.8 nero
IK008142 SR-F42 3.0x7.1 / 3.8x7.6 12.7 11.8 10.3 1.0 ÷ 1.6 nero
IK008151 SR-F51 3.0x7.1 / 3.8x7.6 14.3 12.9 nero
IK008153 SR-F53 5x10.4 14.3 12.9 10.3 1.9 ÷ 2.5 nero
IK008183 SR-F83 5x10.4 21.6 21.3 nero
IK008245 SR-5R1 6x15.2 12.8 11.5 10.3 0.5 ÷ 1.6 nero
IK008246 SR-5R2 ø6.2 ÷ ø7.4 13.0 11.5 nero
IK008363 SR-6W2 ø6.2 ÷ ø7.4 12.8 11.8 10.3 1.8 ÷ 2.5 nero
IK008461 SR-6P1 15.9 14.0 nero
IK008463 SR-6P3 ø7.6 15.9 14.0 15.2 0.5 ÷ 1.6 nero
IK008345 SR-6R1 ø7.4 ÷ ø8.2 15.9 14.0 nero
IK008346 SR-6R3 ø7.4 ÷ ø8.2 15.9 14.0 15.2 1.8 ÷ 3.5 nero
IK008671 SR-7R1 ø8.2 ÷ ø9.2 19.9 17.0 nero
IK008673 SR-7R3 ø8.2 ÷ ø9.2 19.7 17.0 20.4 2.0 ÷ 3.4 nero
IK008683 SR-8R3 ø9.2 ÷ ø10.5 / ø11 21.6 21.3 nero
IK008691 SR-9R1 ø9.2 ÷ ø10.5 / ø11 15.0 19.0 11.0 0.5 ÷ 1.6 nero
IK008697 SR-9R7 ø12 ÷ ø15.2 28.0 / 30.2 25.5 nero
ø11 ÷ ø15 11.0 1.8 ÷ 2.5
ø15.2 ÷ ø16.3 / ø17.5
11.0 1.8 ÷ 2.3

14.8 0.5 ÷ 1.6

14.8 1.9 ÷ 3.2

14.8 0.5 ÷ 1.6

14.8 1.9 ÷ 3.2

19.0 0.5 ÷ 1.6

19.0 1.9 ÷ 3.2

20.6 1.9 ÷ 3.2

17.5 0.5 ÷ 1.6

25.2 1.0 ÷ 3.2

Serracavi flessibile Codice Adimpex tipo sezione dimensione A B C T
serie: SR-F52F
cavo cavo

IK008938 SR-F52F flat 4.6x8.0 14.3 13.2 36.0 0.8 ÷ 2.3

Colore: nero
