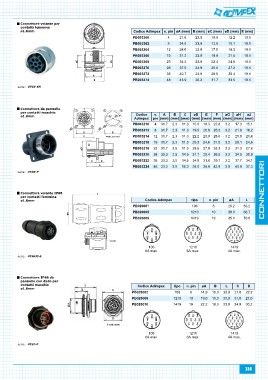

Page 335 - Catalogo Adimpex 2016

Connettore volante per Codice Adimpex n. pin øA (mm) B (mm) øC (mm) øD (mm) E (mm)
contatti femmina
ø1.6mm PB003360 4 21.6 23.9 10.9 12.2 19.1

serie: UTG6-SN PB003362 8 24.8 23.9 13.8 15.1 19.1
Connettore da pannello
per contatti maschio PB003364 12 28.0 23.9 17.0 18.3 19.1
ø1.6mm
PB003366 19 31.2 23.9 19.9 21.5 19.1
serie: UTG0-P
Connettore volante IP6 PB003368 23 34.3 23.9 22.4 24.0 19.1
per contatti femmina
ø1. mm PB003370 28 37.5 24.9 25.6 27.2 19.1

serie: UTS6 C-S PB003372 35 40.7 24.9 26.5 30.4 19.1
Connettore IP6 da
pannello con dado per PB003374 48 43.9 26.2 31.7 33.5 19.1
contatti maschio
ø1. mm Codice n. A B C øD E F øG øH øJ
Adimpex pin (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
serie: UTS -P PB003210 4 31.7 2.3 11.3 15.0 18.3 23.8 3.2 17.3 15.1
PB003212 8 31.7 2.3 11.3 19.0 20.6 26.2 3.2 21.8 18.2
PB003214 12 31.7 2.3 11.3 22.2 23.0 28.6 3.2 25.0 21.4
PB003216 19 31.7 2.3 11.3 25.3 24.6 31.0 3.2 28.1 24.6
PB003218 23 31.7 2.5 11.3 28.5 27.0 33.3 3.2 31.3 27.8
PB003220 28 33.3 2.5 14.5 31.7 29.4 36.5 3.2 34.5 30.9
PB003222 35 33.3 3.5 14.5 34.9 31.8 39.7 3.2 37.7 34.1
PB003224 48 33.3 3.5 15.3 38.0 34.9 42.9 3.9 40.9 37.3

Codice Adimpex tipo n. pin øA L
PB020001 106 6 26.2 63.2
PB020005 1210 10 30.1 66.7
PB020009 1419 19 35.1 70.0

106 1210 1419
6A max. 6A max. 4A max.

Codice Adimpex tipo n. pin øA B L C D
PB020002 106 6 14.9 19.3 33.9 27.0 22.2
PB020006 1210 10 19.0 19.3 33.9 31.8 27.0
PB020010 1419 19 22.2 19.3 33.9 34.9 30.2

106 1210 1419
6A max. 6A max. 4A max.

335
