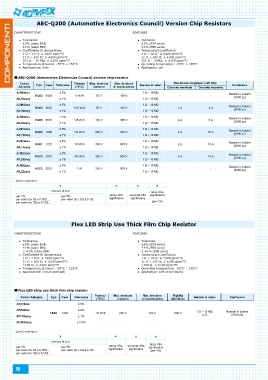

Page 12 - Catalogo Adimpex 2016
P. 12
AEC-Q200 (Automotive Electronics Council) Version Chip Resistors
CARATTERISTICHE FEATURES
Tolleranza: Tolerance:
±5% (serie E24) ±5% (E24 serie)
±1% (serie E96) ±1% (E96 serie)
Coefficiente di temperatura: Temperature coefficient:
1 Ω ÷ 10 Ω: ≤ ±400 ppm/°C 1 Ω ÷ 10 Ω: ≤ ±400 ppm/°C
11 Ω ÷ 100 Ω: ≤ ±200 ppm/°C 11 Ω ÷ 100 Ω: ≤ ±200 ppm/°C
101 Ω ÷ 10 MΩ: ≤ ±100 ppm/°C 101 Ω ÷ 10MΩ: ≤ ±100 ppm/°C
Temperatura di lavoro: -55°C ÷ 155°C Operating temperature: -55°C ÷ 155°C
Applicazione: auto Application: car
AEC-Q200 (Automotive Electronics Council) version chip resistor
Codice Tipo Case Tolleranza Potenza Max. tensione Max. tensione Gamma di valori Resistenza del jumper (<20 mΩ) Confezione
Adimpex (70°C) di lavoro di sovraccarico Corrente nominale Corrente massima Nastrati in bobina
1 Ω ÷ 10 MΩ
AJM04zxx HQ02 0402 ± 5% 1/16 W 50 V 100 V 1 Ω ÷ 10 MΩ -- (5000 pz)
AIL04zxxy ± 1% 1 Ω ÷ 10 MΩ 1A 2A Nastrati in bobina
1 Ω ÷ 10 MΩ 2A 5A
AJM06zxx HQ03 0603 ± 5% 1/10 W-S 50 V 100 V 1 Ω ÷ 10 MΩ 2 A 10 A (5000 pz)
AIL06zxxy ± 1% 1 Ω ÷ 10 MΩ 2 A 10 A Nastrati in bobina
1 Ω ÷ 10 MΩ 2 A 10 A
AJM08zxx HQ05 0805 ± 5% 1/8 W-S 150 V 300 V 1 Ω ÷ 10 MΩ (5000 pz)
AIL08zxxy ± 1% 1 Ω ÷ 10 MΩ -- Nastrati in bobina
1 Ω ÷ 10 MΩ
AJM12zxx HQ06 1206 ± 5% 1/4 W-S 200 V 400 V 1 Ω ÷ 10 MΩ (5000 pz)
AIL12zxxy ± 1% 1 Ω ÷ 10 MΩ Nastrati in bobina
1 Ω ÷ 10 MΩ
AJM14zxx HQ07 1210 ± 5% 1/3 W-S 200 V 500 V 1 Ω ÷ 10 MΩ (5000 pz)
AIL14zxxy ± 1% Nastrati in bobina
AJM20zxx HQ10 2010 ± 5% 3/4 W-S 200 V 500 V (4000 pz)
AIL20zxxy ± 1% Nastrati in bobina
AJM22zxx HQ12 2512 ± 5% 1W 200 V 500 V (4000 pz)
AIL22zxxy ± 1%
Come ordinare:
z x xy
prima cifra
numero di zeri significativa terza cifra
significativa
per 1% per 5% seconda cifra
per valori da 1Ω a 9.76Ω: , per valori da 1.0Ω a 9.1Ω: . significativa (per 1%)
per valori da 10Ω a 97.6Ω: .
Flex LED Strip Use Thick Film Chip Resistor
CARATTERISTICHE FEATURES
Tolleranza: Tolerance:
±5% (serie E24) ±5% (E24 serie)
±1% (serie E96) ±1% (E96 serie)
≤ ±1% (serie E96) ≤ ±1% (E96 serie)
Coefficiente di temperatura: Temperature coefficient:
1 Ω ÷ 10 Ω: ≤ ±400 ppm/°C 1 Ω ÷ 10 Ω: ≤ ±400 ppm/°C
11 Ω ÷ 100 Ω: ≤ ±200 ppm/°C 11 Ω ÷ 100 Ω: ≤ ±200 ppm/°C
>100 Ω: ≤ ±100 ppm/°C >100 Ω: ≤ ±100 ppm/°C
Temperatura di lavoro: -55°C ÷ 155°C Operating temperature: -55°C ÷ 155°C
Applicazione: circuiti stampati Application: soft circuit board
Flex LED strip use thick film chip resistor
Codice Adimpex Tipo Case Tolleranza Potenza Max. tensione Max. tensione Rigidità Gamma di valori Confezione
(70°C) di lavoro di sovraccarico dielettrica 1 Ω ÷ 10 MΩ Nastrati in bobina
AFD06zxx LE06 1206 ± 5% 1/4 W-S 200 V 0Ω
AFE06zxx ± 2% 400 V 500 V (5000 pz)
AFF06zxxy ± 1%
AFG06zxxy ± 0.5%
Come ordinare:
z x xy
numero di zeri terza cifra
significativa
per 1% per 5% prima cifra seconda cifra
per valori da 1Ω a 9.76Ω: , per valori da 1.0Ω a 9.1Ω: . significativa significativa (per 1%)
per valori da 10Ω a 97.6Ω: .
12
