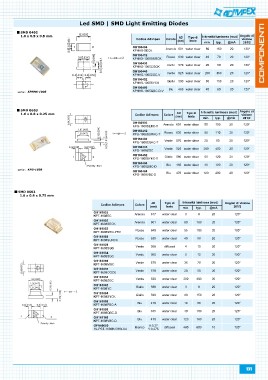

Page 131 - Catalogo Adimpex 2016

Led SMD | SMD Light Emitting Diodes

SMD 0402 Codice Adimpex Colore λD Tipo di Intensità luminosa (mcd) Angolo di
1.0 x 0.5 x 0.5 mm (nm) lente visione

serie: KPHHS-1005 min. typ. @mA 2θ1/2
SMD 0603
1.6 x 0.8 x 0.25 mm OH100406 Arancio 601 water clear 80 150 20 120°
KPHHS-SECK
serie: KPG-1608
SMD 0603 OH100412 Rosso 630 water clear 40 70 20 120°
KPHHS-1005SURCK
1.6 x 0.8 x 0.75 mm
OH100430 Verde 570 water clear 20 50 20 120°
KPHHS-1005CGCK

OH100445 Verde 525 water clear 200 450 20 120°
KPHHS-1005ZGC-V

OH100452 Giallo 590 water clear 80 150 20 120°
KPHHS-1005SYCK

OH100460 Blu 465 water clear 40 60 20 120°
KPHHS-1005QBC-D-V

Codice Adimpex Colore λD Tipo di Intensità luminosa (mcd) Angolo di
(nm) lente min. typ. @mA visione
OH160905 2θ1/2
KPG-1608SEKC-T Arancio 601 water clear 55 100 20 120°
OH160412
KPG-1608SURKC-T Rosso 630 water clear 55 110 20 120°
OH160430
KPG-1608CGKC-T Verde 570 water clear 20 50 20 120°
OH160445
KPG-1608ZGC Verde 525 water clear 200 400 20 120°
OH160452
KPG-1608SYKC-T Giallo 590 water clear 55 120 20 120°
OH160460
KPG-1608QBC-D Blu 465 water clear 40 100 20 120°
OH160464
KPG-1608VBC-D Blu 470 water clear 120 200 20 120°

Codice Adimpex Colore λD Tipo di Intensità luminosa (mcd) Angolo di visione
Arancio (nm) lente 2θ1/2
OH161025 min. typ. @mA 120°
KPT-1608EC 617 water clear 120°
3 8 20 120°
OH161092 120°
KPT-1608SECK Arancio 601 water clear 80 180 20 120°
120°
OH161053 Rosso 640 water clear 55 100 20 120°
KPT-1608SRC-PRV 120°
Rosso 630 water clear 40 80 20 120°
OH161089 120°
KPT-1608SURCK Verde 568 diffused 4 15 20 120°
120°
OH161028 Verde 568 water clear 5 12 20 120°
KPT-1608SGD 120°
Verde 570 water clear 36 70 20 120°
OH161034
KPT-1608SGC Verde 570 water clear 20 50 20

OH161096 Verde 525 water clear 200 400 20
KPT-1608MGC
Giallo 588 water clear 3 8 20
OH161035
KPT-1608CGCK Giallo 590 water clear 80 150 20

OH161052 Blu 470 water clear 18 60 20
KPT-1608ZGC
Blu 465 water clear 40 100 20
OH161043
KPT-1608YC Blu 470 water clear 120 180 20
460 600 10
OH161094 Bianco X:0.27 diffused
KPT-1608SYCK Y:0.275

OH161099
KPT-1608PBC-A

OH161098
KPT-1608QBC-D

OH161160
KPT-1608VBC-D

OFA49050
HL-PST-1608H233W-04

131
